SB FALL PROTECTION

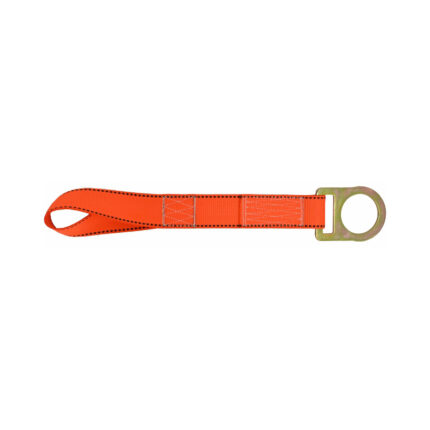

| SBA34100ES |
|---|
| Made of 44mm wide Polyester Webbing. |
| Length : 1.07mtr. or as requested. |
| Has a D-Ring at one end and textile loop at the other end. |
| It comes with polyester tubular on the load-bearing face of the webbing, for abrasion resistance. |
| Strength : Min 18 kN for 3 minutes. |
| Conforms to EN 795 : 2012 Type B. |
| *Length available as per request |

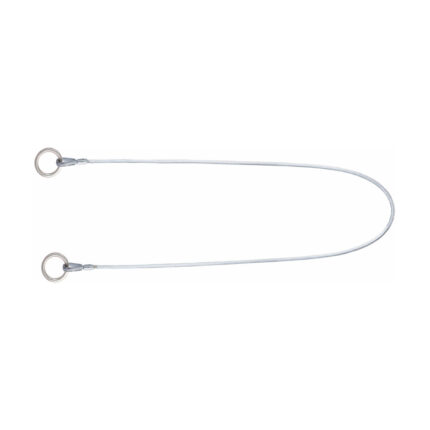

| SBA36100WR |
|---|
| Made of PVC coated 8.0mm G. I. Wire Rope. |
| The PVC coating allows protection of anchorage surfaces. |
| Available Length : 1.0mtr., 1.5mtr., 1.8mtr. & 2.0mtr. or as requested |
| Has steel thimbles at both ends to enable connection with all hardware. |
| Minimum Breaking Strength : 5000lbs / 23kN |
| Conforms to EN 795 : 2012 Type B |
| *Length available as per request |

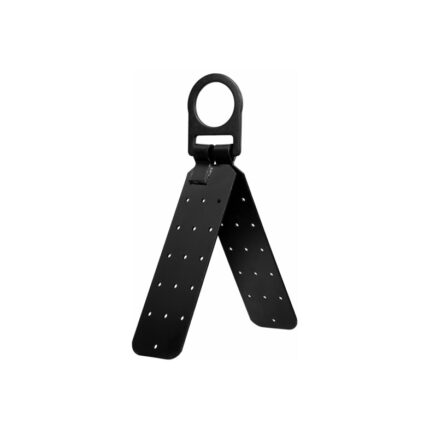

| SBA400RA |
|---|
| The Steel Flaps each having 32 holes which can be fitted on the two sides of a structure by means of nails inserted in the holes. |
| The Hinged Steel Roof Anchor has two Steel Hinged Flaps which can be nailed to the roof structure through various wide angles to provide a safe anchorage. |
| It has a D-ring which allows movement over full work surface. |
| Material: Galvanized Steel |
| Minimum Breaking Strength: 23 kN |
| Finish: Powder Coated or Zinc Plated |
| Weight: 1.14kgs |
| Conforms to: EN 795: 2012 Type A & ANSI Z 359.1: 2007 |
| Details | SBH022 |
|---|---|
| Usage | Fall Arrest, Tower or Ladder Climbing |
| Breaking Strength | 25 KN |
| D-ring Position | Back Side |
| Textile Loops | Yes (Front) |
| Adjustability | Shoulder, Chest, & Thigh |
| Webbing Properties | Polyester |
| Fall Indicator | Yes |
| Buckle Type | Alloy Steel with Zinc Plating |
| Stitching Thread | Polyester |
| Webbing Width | 44mm |
| Size | Universal |
| Weight | 1200 gms (approx.) |
| Standards | EN 361:2002 |
